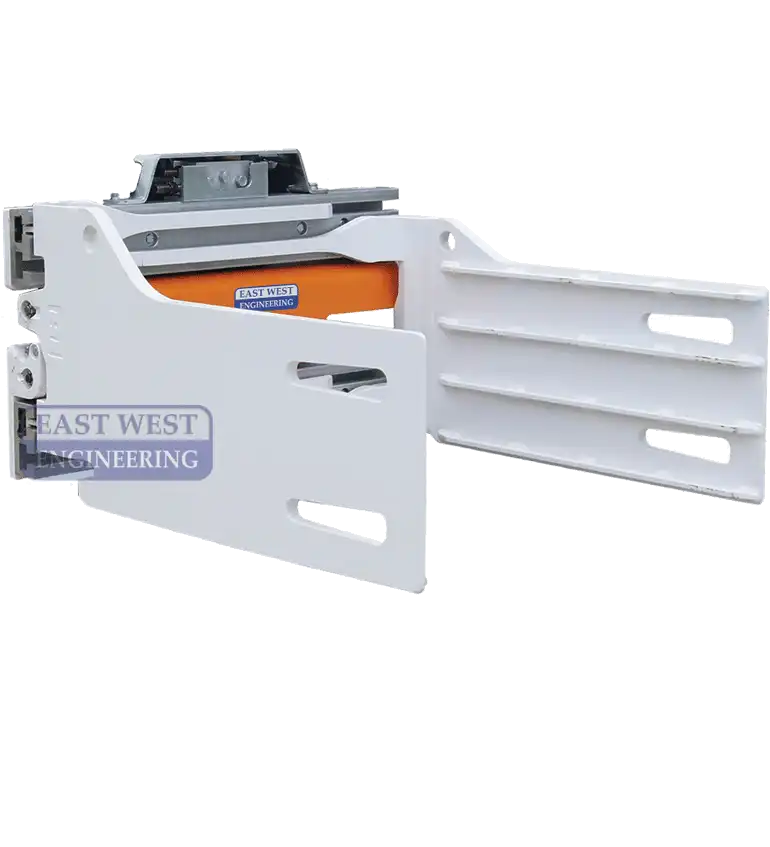

RBC Bale Clamp - Image 2

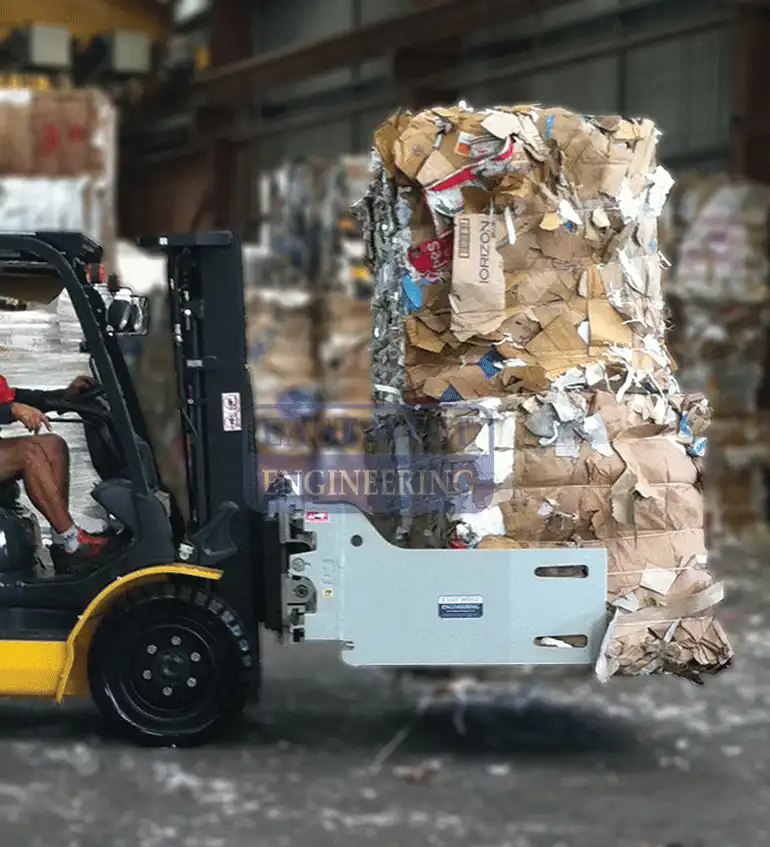

RBC Bale Clamp Attachment - East West Engineering

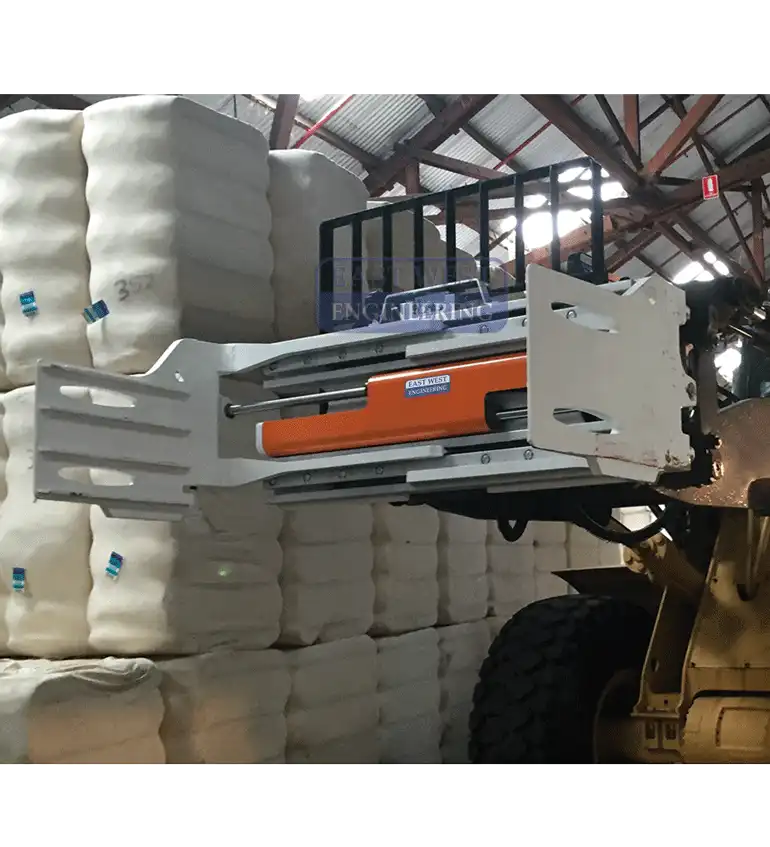

RBC Bale Clamp - Image 4

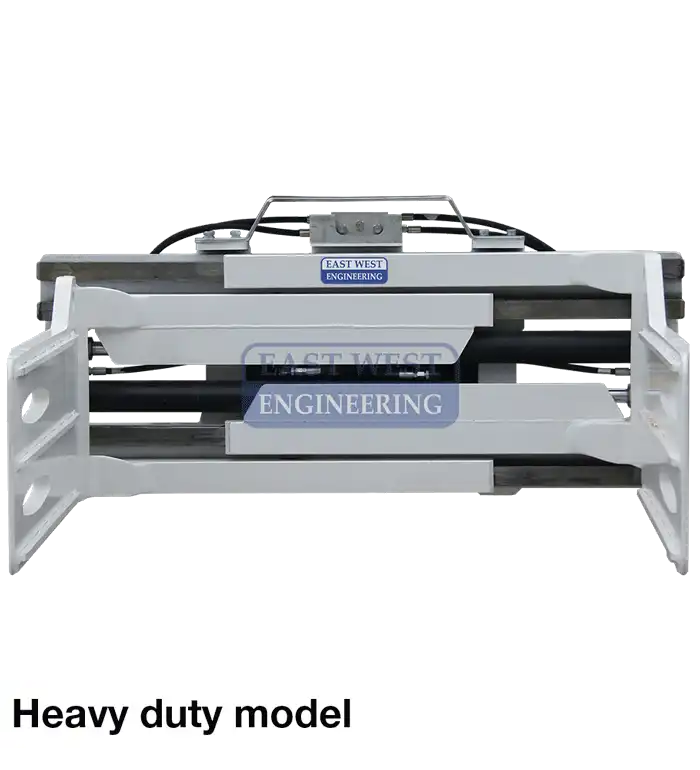

RBC Bale Clamp - Image 5

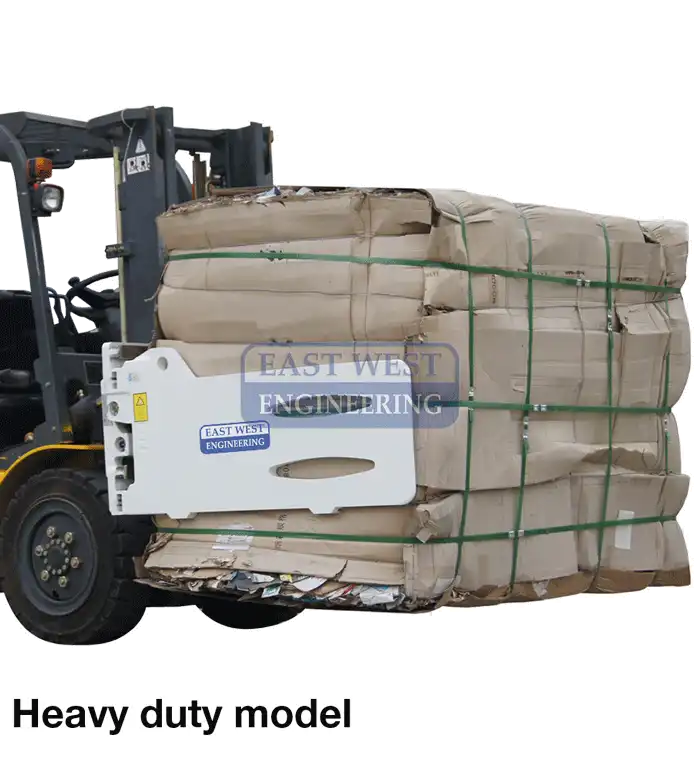

RBC Bale Clamp - Image 6

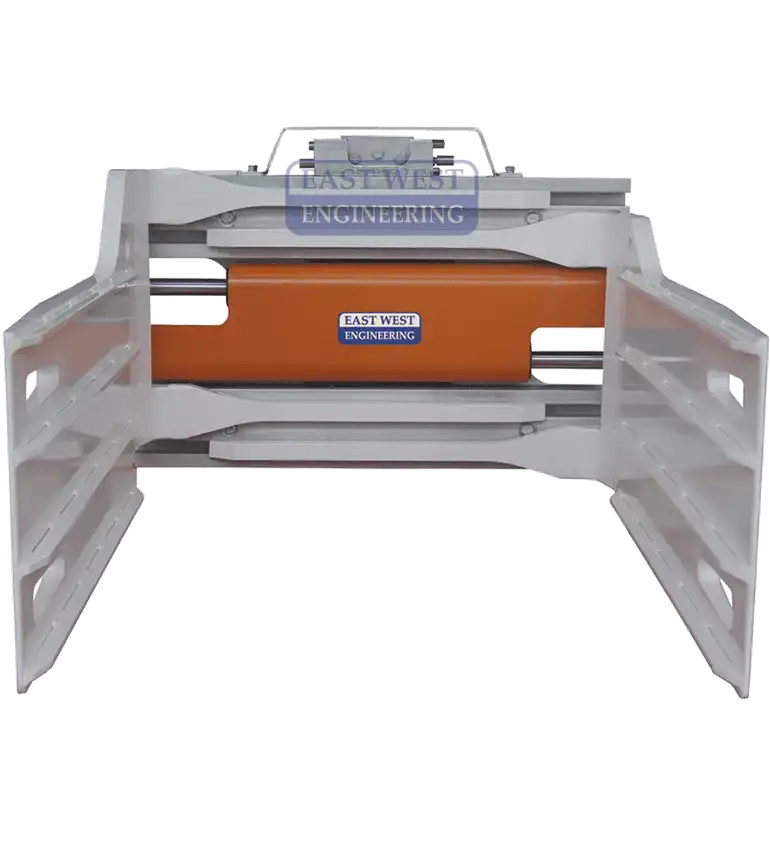

RBC Bale Clamp

The RBC Bale Clamp is designed to efficiently handle baled products or blocks.

FEATURES:

  • Enable forklift operator to clamp unpalletised loads
  • Commonly used for handling baled products like waste paper, cotton, wool, textile and metal scrap bales
  • Lateral sliding arm design for smooth clamping and sideshifting function
  • Ribbed arms for secure grip and handling of load
  • Available in a wide range of openings and arm lengths
  • Maximum residual capacity due to minimum weight and lost load
  • Cylinder protection to prevent damage
  • Robust design
  • Sideshift function
Enquire Now

• Hoses not included
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Please contact the forklift manufacturer for the residual capacity of attachment

SKU: RBC_Main Categories: , , ,
ModelCapacity @ LC (kg@mm)Mounting ClassFrame Width (mm)Opening Range (mm)Arm Height (mm)Arm Length (mm)Arm Thickness (mm)Lost Load (mm)HCG (mm)VCG (mm)Unit Weight (kg)Compare
Model: RBC20D-B002Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1730Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 358VCG (mm): 181Unit Weight (kg): 460Compare:

Model: RBC20D-B004Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1740Arm Height (mm): 415Arm Length (mm): 780Arm Thickness (mm): 75Lost Load (mm): 130HCG (mm): 205VCG (mm): 173Unit Weight (kg): 390Compare:

Model: RBC20D-B007Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1600Opening Range (mm): 430-2270Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 293VCG (mm): 199Unit Weight (kg): 565Compare:

Model: RBC22D-C004Capacity @ LC (kg@mm): 2200@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 490-2330Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 148HCG (mm): 183VCG (mm): 238Unit Weight (kg): 610Compare:

Model: RBC28D-C002Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1016Opening Range (mm): 570-1920Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 370VCG (mm): 214Unit Weight (kg): 585Compare:

Model: RBC28D-C004Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1200Opening Range (mm): 570-2110Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 361VCG (mm): 215Unit Weight (kg): 620Compare:

Model: RBC28D-C024Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 495-2335Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 145HCG (mm): 184VCG (mm): 237Unit Weight (kg): 610Compare:

Model: RBC28D-C025Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1615Opening Range (mm): 700-2780Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 306VCG (mm): 222Unit Weight (kg): 735Compare:

Model: RBC30F-C001Capacity @ LC (kg@mm): 3000@500Mounting Class: IIIFrame Width (mm): 1265Opening Range (mm): 750-2100Arm Height (mm): 460Arm Length (mm): 1200Arm Thickness (mm): 85Lost Load (mm): 140HCG (mm): 327VCG (mm): 239Unit Weight (kg): 770Compare:

Model: RBC35F-C006Capacity @ LC (kg@mm): 3500@600Mounting Class: IIIFrame Width (mm): 1820Opening Range (mm): 555-2630Arm Height (mm): 460Arm Length (mm): 1000Arm Thickness (mm): 95Lost Load (mm): 162HCG (mm): 240VCG (mm): 264Unit Weight (kg): 1070Compare:

Model: RBC50F-D001Capacity @ LC (kg@mm): 5000@600Mounting Class: IVFrame Width (mm): 1650Opening Range (mm): 580-2500Arm Height (mm): 460Arm Length (mm): 1600Arm Thickness (mm): 98Lost Load (mm): 182HCG (mm): 389VCG (mm): 292Unit Weight (kg): 1530Compare:

Have a question about this product?
For detailed specifications please complete the form below and our sales team will be in touch shortly.

Product Enquiry

This field is for validation purposes and should be left unchanged.
Name(Required)

Related Products

Explore related products designed for similar handling needs. With one of Australia’s most extensive ranges of material handling solutions, we’ll help you find exactly what you need.

Need help finding the right solution? Contact our sales team for expert product advice.

Contact Us

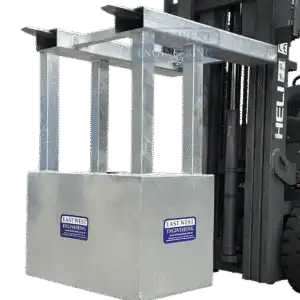

FCA66 Bin Compactor

FCA66 Bin Compactor

View Details
FDCS Cable Drum Slippers

FDCS Cable Drum Slippers

View Details
FCJ6M Forklift Container Unloading Jib

FCJ6M Forklift Container Jib

View Details

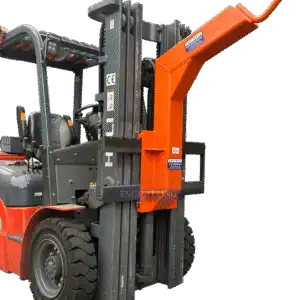

FCSP Single Point Forklift Bulk Bag Lifter

FCSP Bulk Bag Lifter - Single Point

View Details
FBA Forklift Blade Attachment

FBA120 Blade Attachment

View Details
CYQ45/68/80 Sideshift (4.5-8T)

CYQ45/68/80 Sideshift (4.5-8T)

View Details

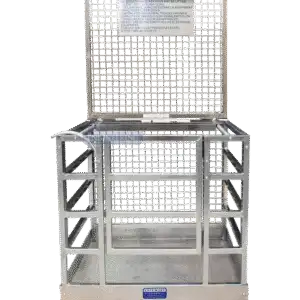

FWP25C Collapsible Forklift Work Platform
