QHF Quick Hitch Floating Carriage

The QHF Quick Hitch Floating Carriage is a fork carriage and tine assembly designed for telehandlers and loader machines fitted with a ‘quick hitch’ or tool carrier and is custom manufactured to suit each truck carriage. The fork tines are pin mounted to ‘self level’ when the machine is operating on uneven ground.

FEATURES:

  • Suits most telehandler and loaders
  • Pin mounted fork tines allow self leveling on uneven ground
  • Fitted with 125 x 50mm fork tines with a length of 1200mm
  • Available in 2 sizes
  • Individually designed to suit quick hitch carriage as specified by customer
  • Tine locking pins are safety chained to framework
  • Enamel paint finish
Enquire Now

Pending hitch availability.  Check compatibility with your truck manufacturer.

SKU: QHF_Main Categories: ,
ModelWorking Load Limit (WLL) kgLoad Centre (mm)Carriage Width (mm)Min. Tine Spread Inner to inner (mm)Max. Tine Spread Outer to outer (mm)Min. Tine Spread - Inner to Inner (mm)Max. Tine Spread - Outer to Outer (mm)Unit Weight (kg)OperationFinishCompare

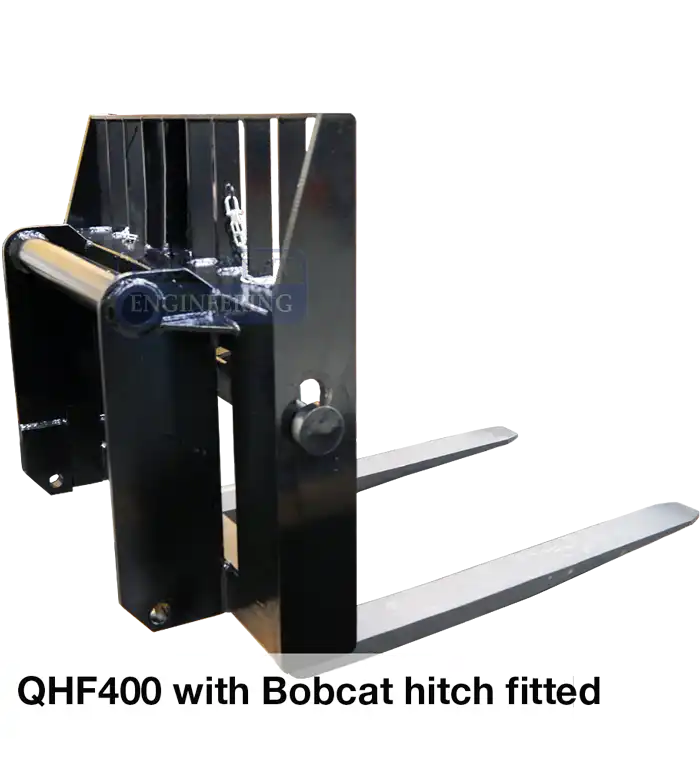

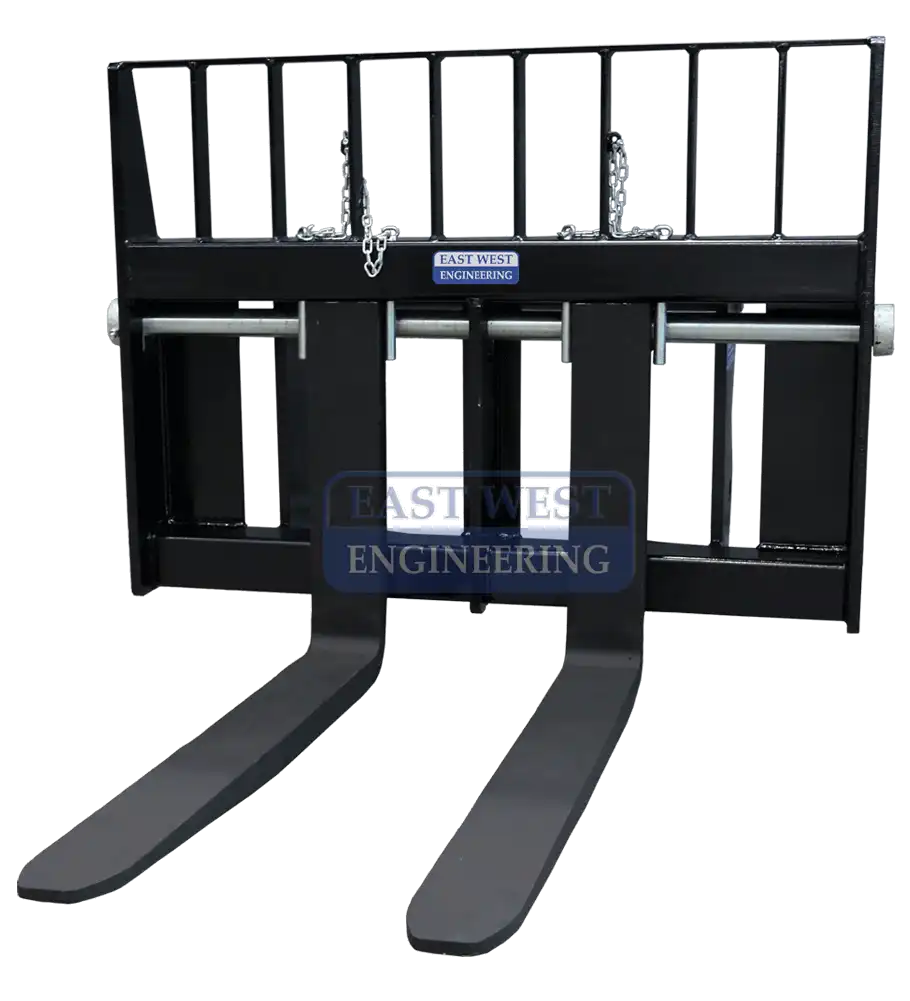

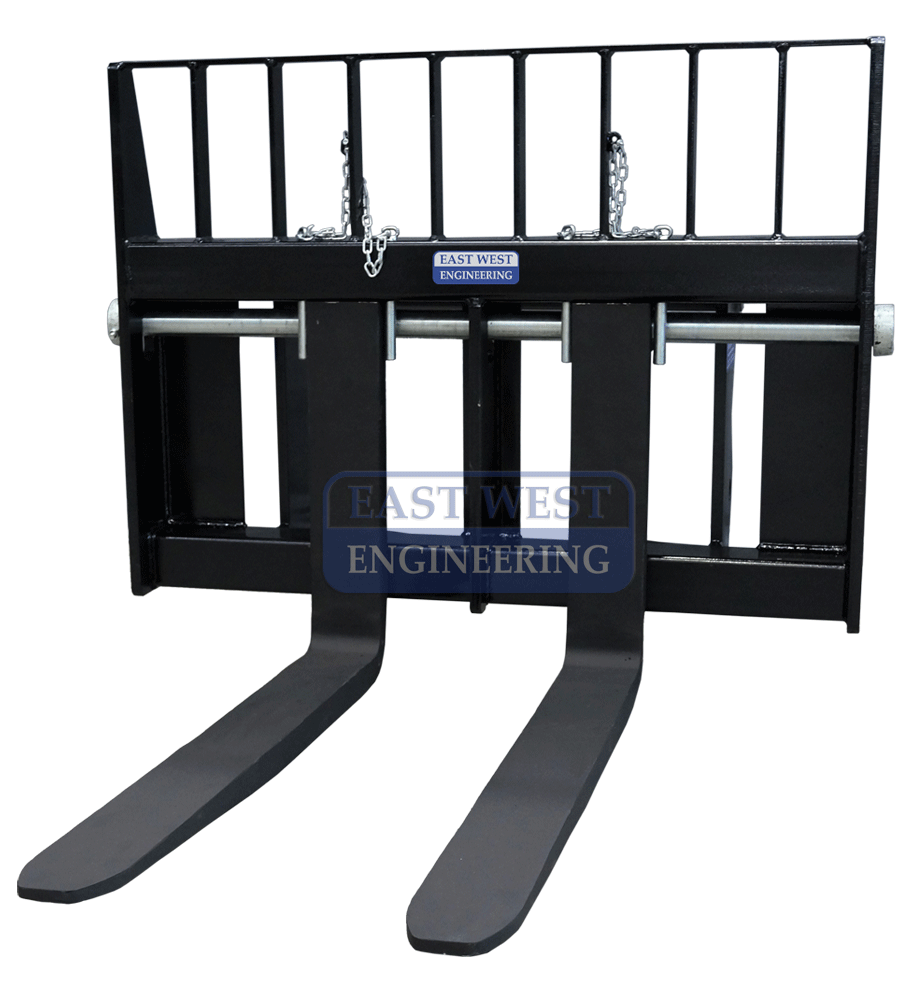

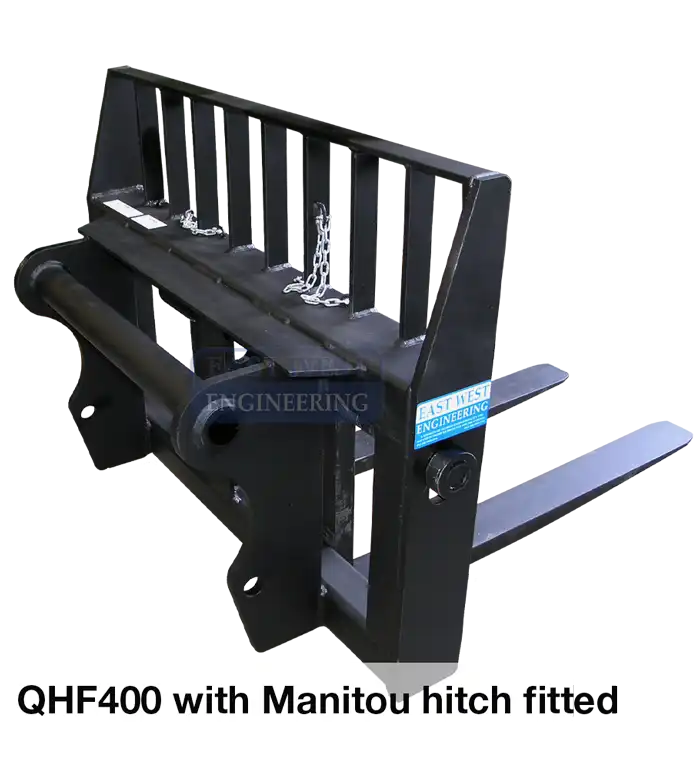

Model: QHF400Working Load Limit (WLL) kg: 4000Load Centre (mm): 600Carriage Width (mm): 1260Min. Tine Spread Inner to inner (mm): 30Max. Tine Spread Outer to outer (mm): 1200Min. Tine Spread - Inner to Inner (mm): 30Max. Tine Spread - Outer to Outer (mm): 1200Unit Weight (kg): 360Operation: Pin mountedFinish: Enamel paintCompare:

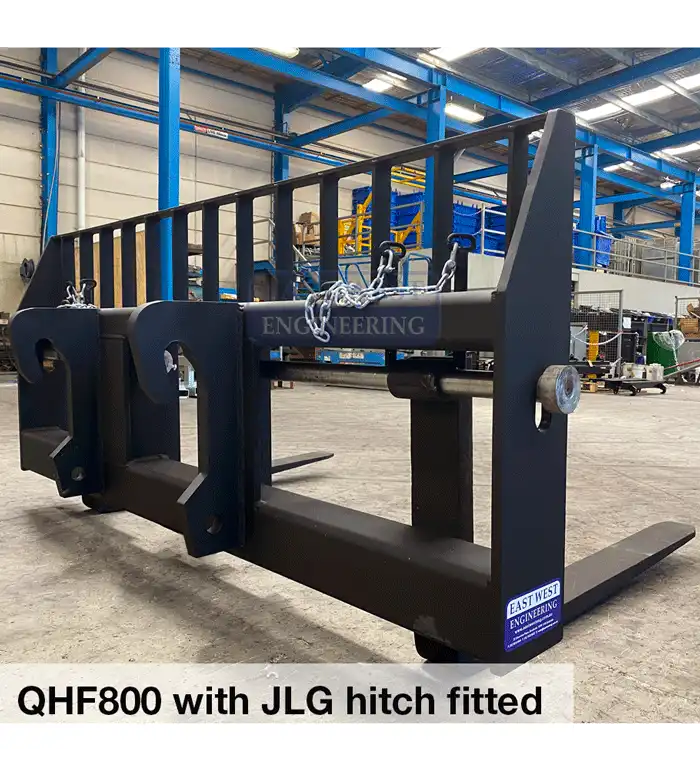

Model: QHF800Working Load Limit (WLL) kg: 4000Load Centre (mm): 600Carriage Width (mm): 2240Min. Tine Spread Inner to inner (mm): 500Max. Tine Spread Outer to outer (mm): 2200Min. Tine Spread - Inner to Inner (mm): 500Max. Tine Spread - Outer to Outer (mm): 2200Unit Weight (kg): 500Operation: Pin mountedFinish: Enamel paintCompare:

* Unit weight varies on fitted hitch
** Other sizes and capacities available on request
