FA Fork Arms - East West Engineering

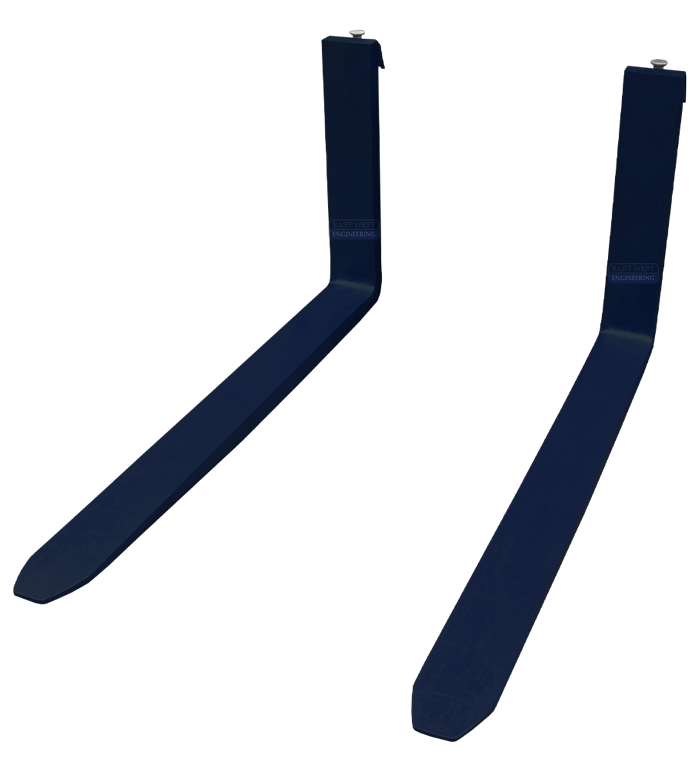

FA Fork Arms

Price range: $400.00 through $1,710.00

The FA Fork Arms are designed and manufactured in accordance with AS2359.1.

FEATURES:

  • Manufactured from high tensile steel
  • Light weight, slow wearing ensuring a long reliable service life
  • Fitted with Standard ITA hooks
  • Rotator Fork Arms (R) are manufactured to suit carriage rotators with an additional full load bearing block (3rd hook) allowing equal rated load when fully inverted
  • Random testing carried out in accordance with AS2359.1, clause 6.5
  • Custom sizes available on request
Enquire Now

When fitting fork arms ensure that the marking on the fork arms is compatible with the forklift rating. Each fork arm is stamped on the side with the relevant information. The rating is for an individual fork arm and should be doubled to provide a total safe working load. The fitting of fork arms with a lower rating than the forklift truck could lead to failure, resulting in injury or death.

SKU: FA_Main Categories: , ,
ModelMounting ClassWidth (mm)Thickness (mm)Length (mm)Weight / pair (kg)Compare
Model: FA15-107Mounting Class: Class 2 Width (mm): 100Thickness (mm): 35Length (mm): 1070Weight / pair (kg): 82Compare:

Model: FA15-120RMounting Class: Class 2Width (mm): 100Thickness (mm): 35Length (mm): 1200Weight / pair (kg): 90Compare:

Model: FA25-107Mounting Class: Class 2 Width (mm): 120Thickness (mm): 40Length (mm): 1070Weight / pair (kg): 112Compare:

Model: FA25-120Mounting Class: Class 2 Width (mm): 120Thickness (mm): 40Length (mm): 1200Weight / pair (kg): 123Compare:

Model: FA25-120RMounting Class: Class 2 Width (mm): 120Thickness (mm): 40Length (mm): 1200Weight / pair (kg): 123Compare:

Model: FA25-137Mounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 1370Weight / pair (kg): 134Compare:

Model: FA25-152Mounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 1525Weight / pair (kg): 146Compare:

Model: FA25-152RMounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 1525Weight / pair (kg): 146Compare:

Model: FA25-183Mounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 1830Weight / pair (kg): 170Compare:

Model: FA25-213Mounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 2130Weight / pair (kg): 192Compare:

Model: FA25-244Mounting Class: Class 2Width (mm): 120Thickness (mm): 40Length (mm): 2440Weight / pair (kg): Compare:

Model: FA35-107Mounting Class: Class 3 Width (mm): 125Thickness (mm): 50Length (mm): 1070Weight / pair (kg): 152Compare:

Model: FA35-120Mounting Class: Class 3 Width (mm): 125Thickness (mm): 50Length (mm): 1200Weight / pair (kg): 166Compare:

Model: FA35-120RMounting Class: Class 3 Width (mm): 125Thickness (mm): 50Length (mm): 1200Weight / pair (kg): 166Compare:

Model: FA35-152Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA35-152RMounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA35-183Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-107Mounting Class: Class 3 Width (mm): 150Thickness (mm): 50Length (mm): 1070Weight / pair (kg): 179Compare:

Model: FA45-120Mounting Class: Class 3 Width (mm): 150Thickness (mm): 50Length (mm): 1200Weight / pair (kg): 197Compare:

Model: FA45-120RMounting Class: Class 3 Width (mm): 150Thickness (mm): 50Length (mm): 1200Weight / pair (kg): 197Compare:

Model: FA45-137Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-152Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-152RMounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-183Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-213Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA45-244Mounting Class: Width (mm): Thickness (mm): Length (mm): Weight / pair (kg): Compare:

Model: FA60-120Mounting Class: Class 4 Width (mm): 150Thickness (mm): 60Length (mm): 1200Weight / pair (kg): 260Compare:

Model: FA60-120RMounting Class: Class 4 Width (mm): 150Thickness (mm): 60Length (mm): 1200Weight / pair (kg): 260Compare:

Model: FA70-120RMounting Class: Class 4 Width (mm): 150Thickness (mm): 60Length (mm): 1200Weight / pair (kg): 260Compare:

* Fork Arms are supplied in a range of capacities and lengths.

** Always ensure that the rating of the Fork Arm is equal to or exceeds the rated lift capacity of the fork truck.
