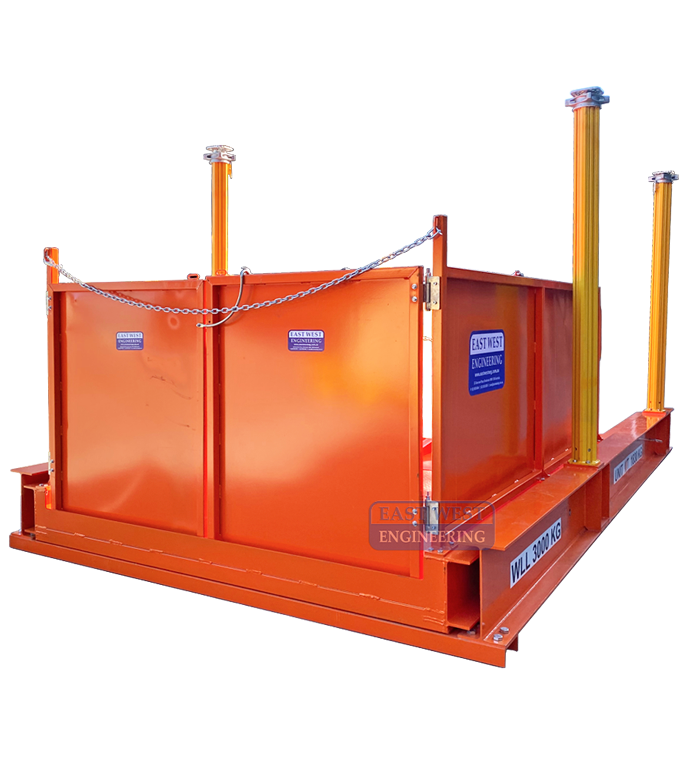

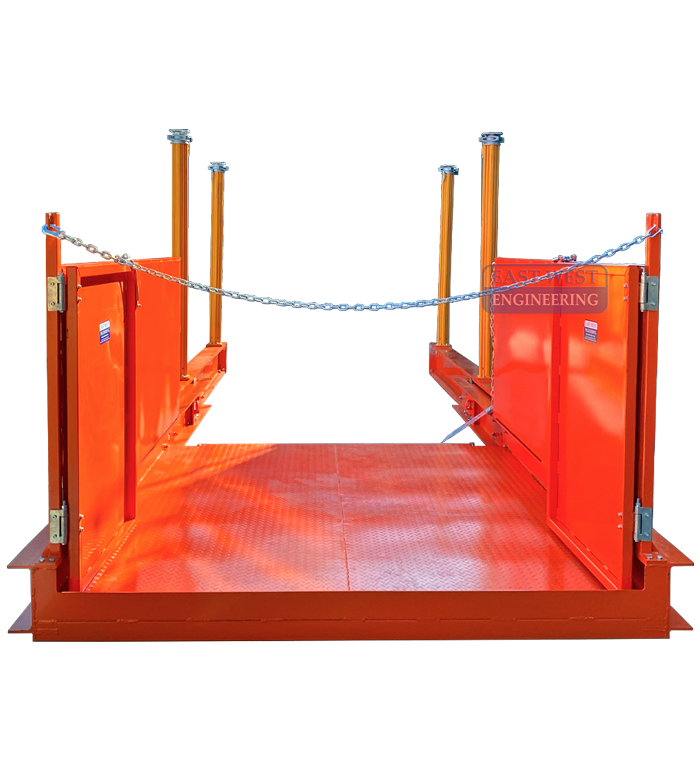

CCLP30-RD Retractable Crane Loading Deck

The CCLP30-RD Retractable Crane Loading Deck is a safe, convenient and cost effective access solution for loading and unloading materials at multi-storey and high rise projects by crane.  Designed to suit smaller construction or demolition projects with limited or constrained space and lighter material loads, this temporary platform helps increase site safety and productivity, while reducing labour time and costs.

FEATURES:

  • Allows materials and equipment to be loaded on or off different levels by cranes during construction
  • Retractable design allows vertical stacking of decks
  • Retracts almost flush with building (150mm protrusion) increasing usable loading space when using multiple decks
  • Lightweight unit easily rolls in and out for loading by one operator
  • 3 Tonne WLL
  • Quick & easy installation
  • Simple locking system
  • 4 adjustable aluminium support props supplied
  • Front and rear safety chains for added safety
  • Stackable for storage and transport ease
  • Enamel paint finish
Enquire Now

Masonry anchors not included

SKU: CCLP30-RD_Main Categories: , ,
ModelWorking Load Limit (WLL) kgConcentrated Load over 1m2 (kg)Internal Clearance (mm)Adjustable Height (mm)Outboard Dimensions (mm)Inboard Dimensions (mm)Platform Dimensions (mm)Platform Dimensions - extended (mm)Unit Weight (kg)To SuitOperationFinishCompare
Model: CCLP30-RDWorking Load Limit (WLL) kg: 3000Concentrated Load over 1m2 (kg): 2000Internal Clearance (mm): 2850(l) x 1900(w)Adjustable Height (mm): 2206 - 3756Outboard Dimensions (mm): 2800(l) x 2435(w)Inboard Dimensions (mm): 4616(l) x 2500(w)Platform Dimensions (mm): 4765(l) x 2500(w) x 1610(h)Platform Dimensions - extended (mm): 7415(l) x 2500(w) x 1610(h)Unit Weight (kg): 1830To Suit: Construction Site MaterialsOperation: RetractableFinish: Enamel PaintCompare:

* Uniformly distributed load
** Dimensions excluding props
*** Inboard dimensions prefers to inside building space
