APV Pipe Trolley
APV Pipe Trolley - Image 2
APV Pipe Trolley - Image 3
APV Pipe Trolley - Image 4
APV Pipe Trolley - Image 5
APV Pipe Trolley - Image 6
APV Pipe Trolley - Image 7
APV Pipe Trolley - Image 8
APV Pipe Trolley

APV Pipe Trolley

Price range: $1,200.00 through $1,610.00

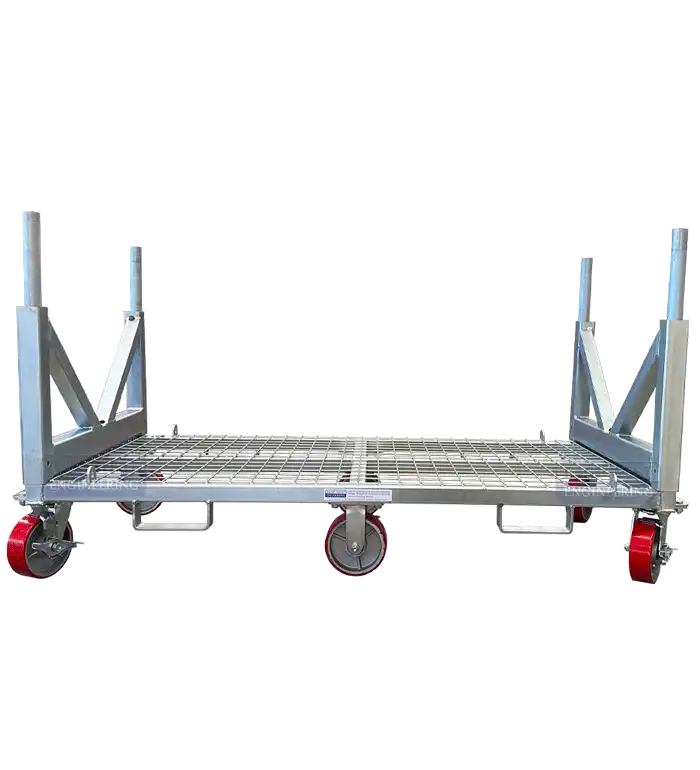

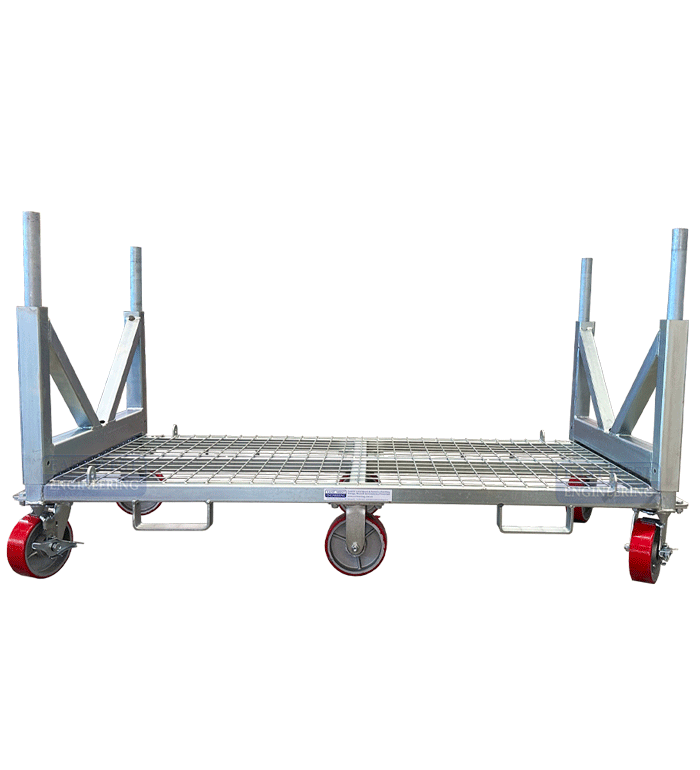

The APV Pipe Trolley is designed to safely store and transport long length materials such as pipe, scaffolding and conduit on site and is sized to fit through a standard doorway. This mobile storage solution increases worker productivity by keeping materials organised and close to work areas.

FEATURES:

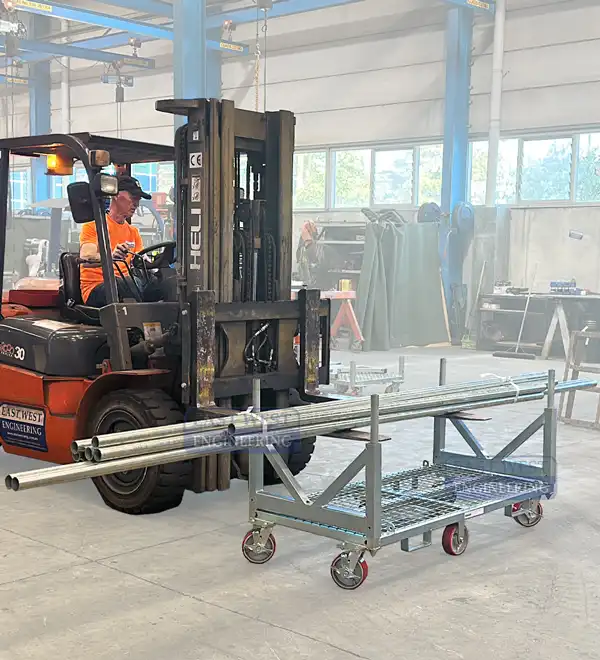

  • Suitable to store and transport long materials such as pipe, scaffolding, conduit, tubing & bar stock
  • Designed to fit through a standard doorframe for carting of loads on-site

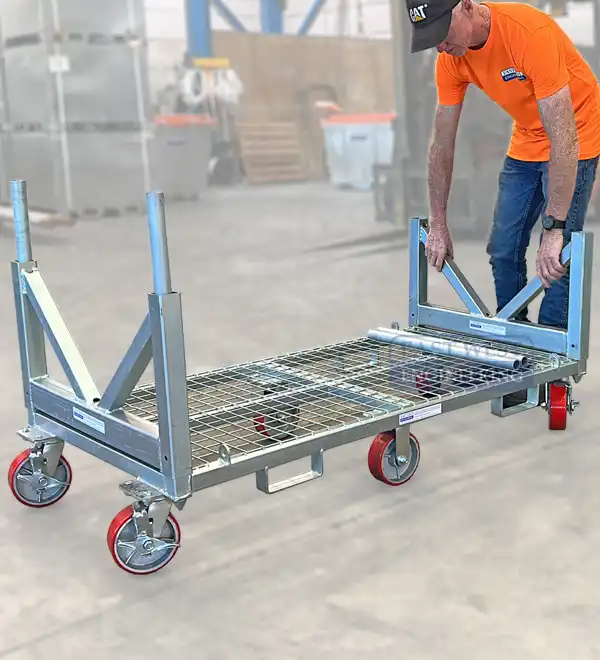

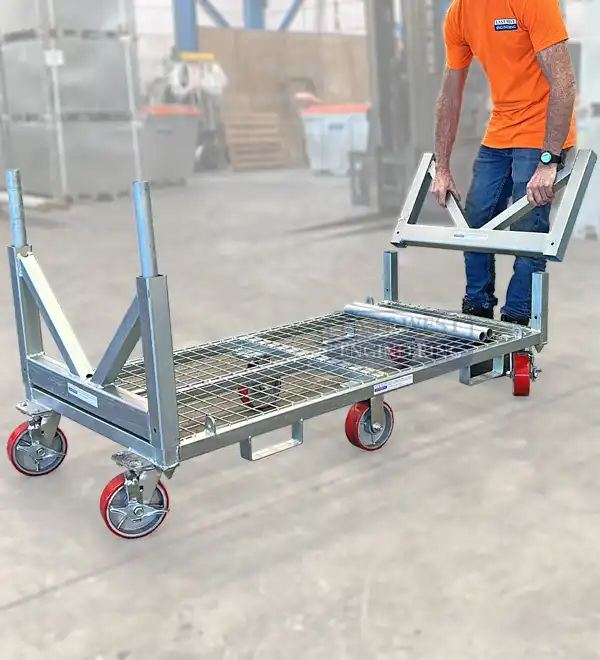

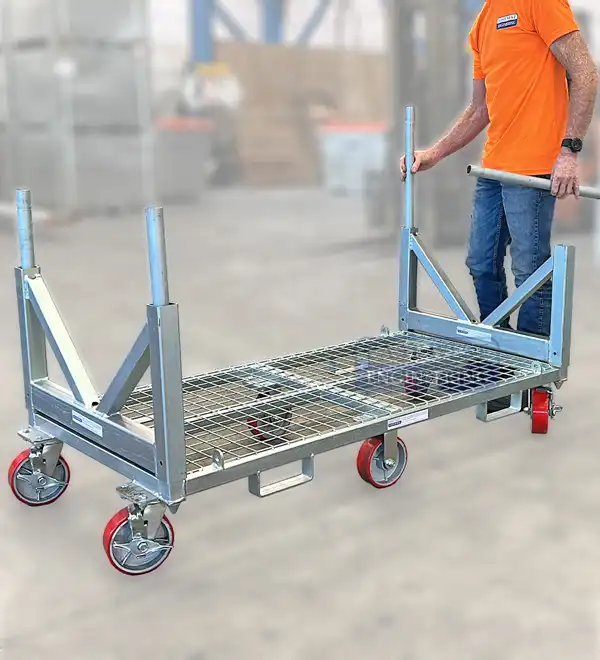

  • Removable V frame for alternative loading requirements

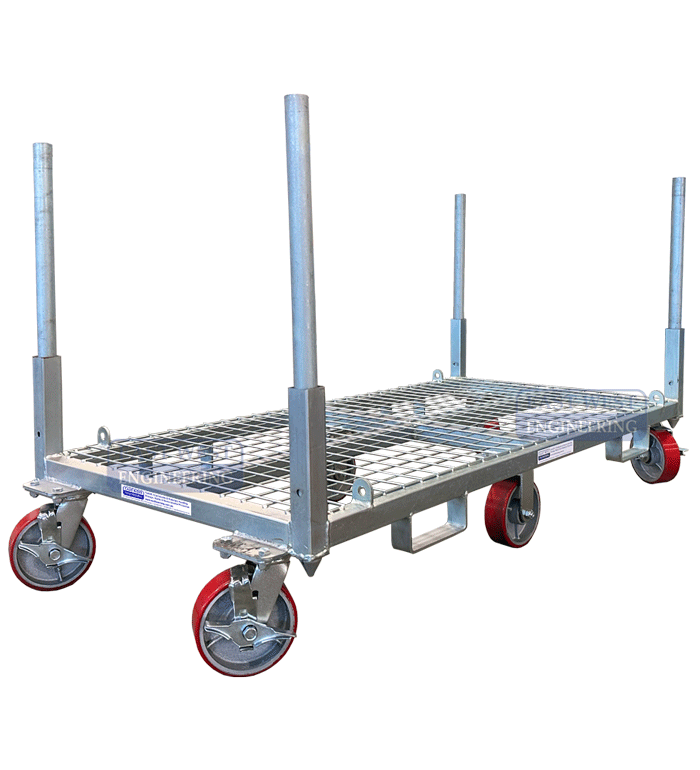

  • Removable corner posts supplied to suit higher load sizes
  • 6 industrial 150mm poly/cast wheels with brakes for easy manoeuvring around the worksite
  • Available in 2 sizes
  • Also available in all terrain model (APV100-AT) for use on rough, uneven ground

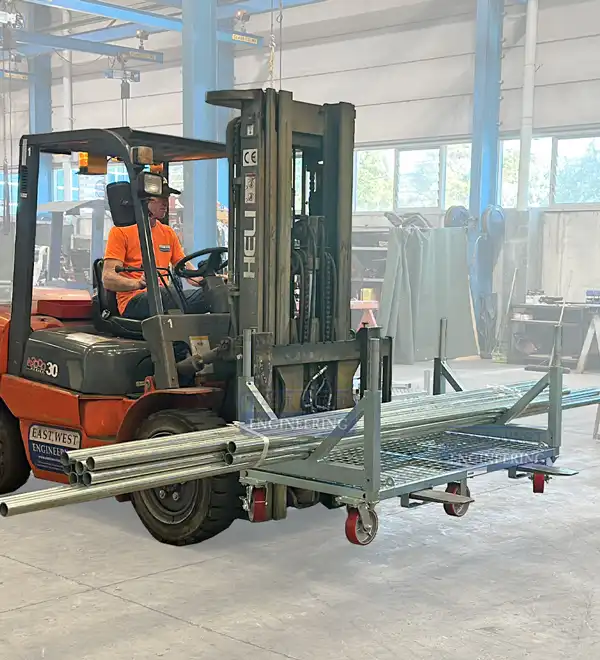

  • Fork stirrups allow loaded trolley to be transported around site by forklift
  • 4 tie down points for securing load
  • Heavy duty construction for maximum stability
  • Zinc finish

Supplied standard as flatpack (for on-site assembly)

Enquire Now

Due to transport safety requirements wheels are supplied for fitment onsite, not pre-fit.

SKU: APV100_Main Categories: , ,
ModelWorking Load Limit (WLL) kgWheelsO/A Dimensions (mm)Fork Stirrup Size (mm)Fork Stirrup Centres (mm)Unit Weight (kg)Compare
Model: APV100Working Load Limit (WLL) kg: 1000Wheels: 6 x 150mm poly/castO/A Dimensions (mm): 1640(l) x 760(w) x 640(h)Fork Stirrup Size (mm): 155 x 55Fork Stirrup Centres (mm): 850Unit Weight (kg): 85Compare:

Model: APV200Working Load Limit (WLL) kg: 2000Wheels: 6 x 150mm poly/castO/A Dimensions (mm): 1930(l) x 1050(w) x 725h)Fork Stirrup Size (mm): 155 x 55Fork Stirrup Centres (mm): 850Unit Weight (kg): 100Compare:

* Unit weight includes V-Frame + Corner Posts

** Overall dimensions is excluding removable corner posts (shown in picture)

Have a question about this product?
For detailed specifications please complete the form below and our sales team will be in touch shortly.

Product Enquiry

This field is for validation purposes and should be left unchanged.
Name(Required)

Related Products

Explore related products designed for similar handling needs. With one of Australia’s most extensive ranges of material handling solutions, we’ll help you find exactly what you need.

Need help finding the right solution? Contact our sales team for expert product advice.

Contact Us

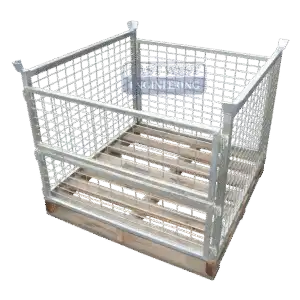

PCT-02 Pallet Cage - 2T

PCT-02 Pallet Cage - 2T

View Details

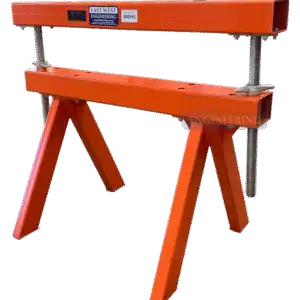

ATSJ Adjustable Height Support Trestle 1.2m

ATSJ Support Trestle - Adjustable Height

View Details

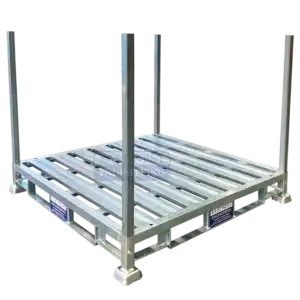

SSP200SP Stackable Stillage Pallet

SSP200SP Stackable Stillage Pallet

View Details

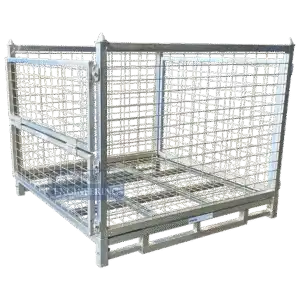

PCM-02 Stillage Cage

PCM-02 Stillage Cage

View Details

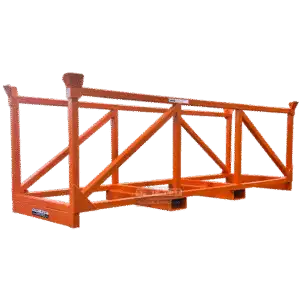

SSU30 Stacking Stillage
