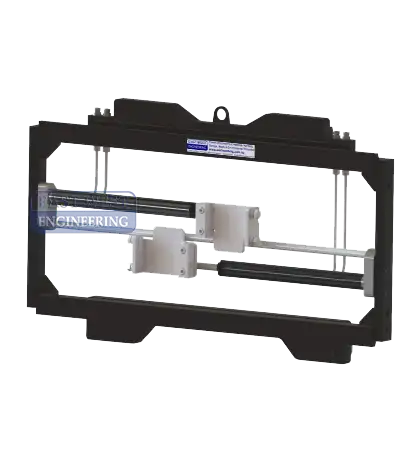

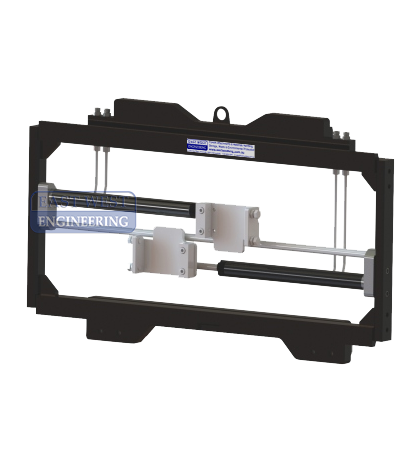

TJC-E Fork Positioner - Non Sideshifting
TJC Non Sideshifting Fork Positioner

TJC-E Fork Positioner – Non Sideshifting

The TJC-E Fork Positioner with adjustable forks offers an efficient, practical solution to handling pallets of varying sizes which helps increase operator productivity while reducing the risk of damage to loads.

FEATURES:

  • Used to hydraulically position forks for frequently changing load widths
  • Suitable for stacking, loading and unloading palletised goods with different load sizes
  • Load guard supplied standard
  • Non-sideshifting model better suited for forklifts factory fitted with integral sideshift
  • Commonly used in logistics, warehouse and manufacturing industries
Enquire Now

Tines and hoses not included. Load guard not shown, but is supplied with this unit. Two additional hydraulic functions required. Opening range refers to the distance between the forks outer edge. The max. fork length is 1830mm. Please contact the Forklift manufacturer for the residual capacity of attachment.

SKU: TJC-E_Main Categories: , , , ,

You may also like…

ModelCapacity @ LC (kg@mm)Mounting ClassCarriage Width (mm)Opening Range (mm)Suits Fork Width (mm)Lost Load (mm)HCG (mm)VCG (mm)Unit Weight (kg)OperationCompare
Model: TJC25E-B003-1020Capacity @ LC (kg@mm): 2500@600Mounting Class: IICarriage Width (mm): 1020Opening Range (mm): 290-915Suits Fork Width (mm): 100-125Lost Load (mm): 82HCG (mm): 41VCG (mm): 208Unit Weight (kg): 88Operation: Fork PositionerCompare:

Model: TJC25E-B003-1150Capacity @ LC (kg@mm): 2500@600Mounting Class: IICarriage Width (mm): 1150Opening Range (mm): 295-1045Suits Fork Width (mm): 100-125Lost Load (mm): 82HCG (mm): 41VCG (mm): 208Unit Weight (kg): 71Operation: Fork PositionerCompare:

Model: TJC25E-B003-1260Capacity @ LC (kg@mm): 2500@600Mounting Class: IICarriage Width (mm): 1260Opening Range (mm): 290-1140Suits Fork Width (mm): 100-125Lost Load (mm): 82HCG (mm): 43VCG (mm): 270Unit Weight (kg): 129Operation: Fork PositionerCompare:

Model: TJC35E-C003-1040Capacity @ LC (kg@mm): 3500@600Mounting Class: IIICarriage Width (mm): 1040Opening Range (mm): 290-935Suits Fork Width (mm): 100-125Lost Load (mm): 87HCG (mm): 43VCG (mm): 270Unit Weight (kg): 82Operation: Fork PositionerCompare:

Model: TJC35E-C003-1150Capacity @ LC (kg@mm): 3500@600Mounting Class: IIICarriage Width (mm): 1150Opening Range (mm): 290-1040Suits Fork Width (mm): 100-125Lost Load (mm): 87HCG (mm): 43VCG (mm): 270Unit Weight (kg): 85Operation: Fork PositionerCompare:

Model: TJC68K-D002-1380Capacity @ LC (kg@mm): 6800@600Mounting Class: IVCarriage Width (mm): 1380Opening Range (mm): 462-1152Suits Fork Width (mm): 140-160Lost Load (mm): 95HCG (mm): 52VCG (mm): 340Unit Weight (kg): 302Operation: Fork PositionerCompare:

Model: TJC68K-D002-2000Capacity @ LC (kg@mm): 6800@600Mounting Class: IVCarriage Width (mm): 2000Opening Range (mm): 467-1767Suits Fork Width (mm): 140-160Lost Load (mm): 95HCG (mm): 57VCG (mm): 464Unit Weight (kg): 433Operation: Fork PositionerCompare:

* Load guard supplied with this unit

Have a question about this product?
For detailed specifications please complete the form below and our sales team will be in touch shortly.

Product Enquiry

This field is for validation purposes and should be left unchanged.
Name(Required)
